Problem

You would like to plot a scatter diagram between two variables, along with a linear fit and text annotation with basic statics (correlation, RMS, etc.).

Solution

The script below (save it to a file name scatter_fit_stats.gs) uses the statistics produced from gxout stats to compute a linear fit for the x and y variables that have been previously plotted on a scatter diagram.


function linear (args)
*
* USAGE:
*        scatter_fit_stats xvar yvar [1]
* Specify "1" to solve a slope for y-intercept = 0.
*
* This uses the statistics produced from gxout stats to compute a linear fit for
* the x and y variables that have been previously plotted on a scatter diagram.
* The fit line is plotted along with a 1:1 line (if in the range of the data).
* Summary Statistics are also included. Since these are stripped from the
* Stats output, area weighting is not considered.
* It is highly recommended that users double check the calculations to better understand
* how this works and that it does suit your needs.
* this has been tested with X,Y space and T space
*
* The script is provided free, but you use it at your own risk. Please contact the
* originator with any improvements, suggestions or corrections.
* Mike.Bosilovich@gmail.com, Sept 19, 2008
*---

xvar1=subwrd(args,1)
yvar1=subwrd(args,2)
doab=subwrd(args,3)

'define xvar='xvar1
'define yvar='yvar1
'set gxout stat'

'd xvar-yvar'
bias=sublin(result,11);bias=subwrd(bias,2)
stddiff=sublin(result,13);stddiff=subwrd(stddiff,2)

'd xvar'
xbar=sublin(result,11);xbar=subwrd(xbar,2)
dtmin=sublin(result,9);dtmin=subwrd(dtmin,5)
dtmax=sublin(result,9);dtmax=subwrd(dtmax,6)
ncnt=sublin(result,7);ncnt=subwrd(ncnt,8)
xsig2=sublin(result,13);xsig2=subwrd(xsig2,2)

'd yvar'
ybar=sublin(result,11);ybar=subwrd(ybar,2)

'set gxout line'
'q dims'

varying=subwrd(result,8)
tim1=sublin(result,5)
t1=subwrd(tim1,6)
t2=subwrd(tim1,8)

if (varying = "varying" )
   'd scorr(xvar,yvar,global)'
   xycorr=subwrd(result,4)
else
   'set t 't1
   'd tcorr(xvar,yvar,time='t1',time='t2')'
   xycorr=subwrd(result,14)
   'set time 't1' 't2
endif

'set gxout stat'
if(doab=1)
   say "  Linear fit intercept = 0 "
   'd xvar*xvar'
   xsqbar=sublin(result,11);xsqbar=subwrd(xsqbar,2)
   'd yvar*xvar'
   xybar=sublin(result,11);xybar=subwrd(xybar,2)
   b=xybar/xsqbar
   a=0
else
   say " Linear fit with intercept "
   'd (xvar-'xbar')*(yvar-'ybar')'
   sxy1=sublin(result,10);sxy1=subwrd(sxy1,2)
   'd (xvar-'xbar')*(xvar-'xbar')'
   sxx1=sublin(result,10);sxx1=subwrd(sxx1,2)
   b=sxy1/sxx1
   a=ybar-b*xbar
endif

say 'Y = 'a' + 'b'*X'

* Draw lines
* ----------
'q gxinfo'
lim=sublin(result,3)
xlim1=subwrd(lim,4)
xlim2=subwrd(lim,6)
lim=sublin(result,4)
ylim1=subwrd(lim,4)
ylim2=subwrd(lim,6)
col1=4
if(doab=1)
   col1=3
endif

* Calculate coordinates to draw the fit line and the 1:1 line
* Both lines are constrained to stay inside the diagram
* -----------------------------------------------------------
'q xy2w 'xlim1' 'ylim1
x1a=subwrd(result,3)
y1a=subwrd(result,6)
y1=a+b*x1a
if(y1<y1a)
   x1=(y1a-a)/b
   y1=y1a
else
   x1=x1a
endif

if(x1a<y1a)
   x1a=y1a
else
   y1a=x1a
endif

'q w2xy 'x1' 'y1
xx1=subwrd(result,3)
yy1=subwrd(result,6)

'q xy2w 'xlim2' 'ylim2
x2a=subwrd(result,3)
y2a=subwrd(result,6)
y2=a+b*x2a
if(y2>y2a)
   x2=(y2a-a)/b
   y2=y2a
else
   x2=x2a
endif

if(x2a>y2a)
   x2a=y2a
else
   y2a=x2a
endif

'q w2xy 'x2' 'y2
xx2=subwrd(result,3)
yy2=subwrd(result,6)
'set line 'col1' 1 6'
'draw line 'xx1' 'yy1' 'xx2' 'yy2

* Draw 1:1 line
* -------------
'q w2xy 'x1a' 'y1a
xx1=subwrd(result,3)
yy1=subwrd(result,6)

'q w2xy 'x2a' 'y2a
xx2=subwrd(result,3)
yy2=subwrd(result,6)

'set line 2 2 6'
'draw line 'xx1' 'yy1' 'xx2' 'yy2

* Write the statistics to the diagram
* -----------------------------------

bout=substr(b,1,6)
xycout=substr(xycorr,1,6)
aout=substr(a,1,6)

* xlo from 16 will put the stats right outside
* Xlo from 14 will put the stats left side inside the scatter
* -----------------------------------------------------------
'q gxinfo'
xlo=subwrd(result,14)
yhi=subwrd(result,22)

xlo=xlo+0.1
dy=0.2
yhi=yhi-dy

'set string 4 tl'
if(doab = 1);  'set string 3 tl'  ;endif
'set strsiz 0.15'
yhi1=yhi
'draw string 'xlo' 'yhi1' b = 'bout
yhi1=yhi1-dy
'draw string 'xlo' 'yhi1' yint  = 'aout
yhi1=yhi1-dy
'draw string 'xlo' 'yhi1' count = 'ncnt
yhi1=yhi1-dy
'draw string 'xlo' 'yhi1' bias X-Y  = 'bias
yhi1=yhi1-dy
'draw string 'xlo' 'yhi1' std diff = 'stddiff
yhi1=yhi1-dy
'draw string 'xlo' 'yhi1' xycorr = 'xycout
'set gxout scatter'


Discussion

GrADS scatter diagrams (set gxout scatter) plot point on an X-Y graph to show the relationship between two variables. If the variables are, or should be, closely or linearly related, it is useful to plot a 1:1 line showing equality, and also the linear fit (y=a+bx). This script above plots the 1:1 line, linear fit and relational statistics (correlation, standard deviation of the difference and the mean difference, as well as number of points, slope and intercept of the fit).

After plotting a scatter diagram with d my_xvar;my_yvar, run the script

ga-> run scatter_fit_stats my_xvar my_yvar

Adding a 1 (number "one") at the end of the call forces the fit through intercept=0. The routine takes the xvar and yvar, and computes some basic statistics to get the fit. The mean difference is also computed as X-Y. This script uses a combination of data from gxout stat and single point values returned as results. It has been tested for data in an XY plan and also a time series. The lines are drawn to stay in the ranges of the graph.

Here is an example using the standard model dataset:

% grads
ga-> open model.ctl
ga-> set lat -60 60
ga-> set lev 850
ga-> set gxout scatter
ga-> d ta ; ts
ga-> draw title Test Scatter Statistics, Ta,Ts
ga-> draw xlab X Ta
ga-> draw ylab Y Ts
ga-> run scatter_fit_stats.gs ta ts

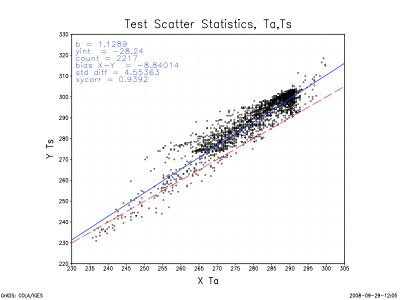

The graphical output follows.

The example above works on data in the X-Y plane. An example involving 2 time series can be found here: Using Serverside operations in GDS/OpenDAP, a recipe which benchmarks server-side calculation versus business as usual access.

See Also

• Sample GrADS Test Data Files for the datasets used in this recipe.
